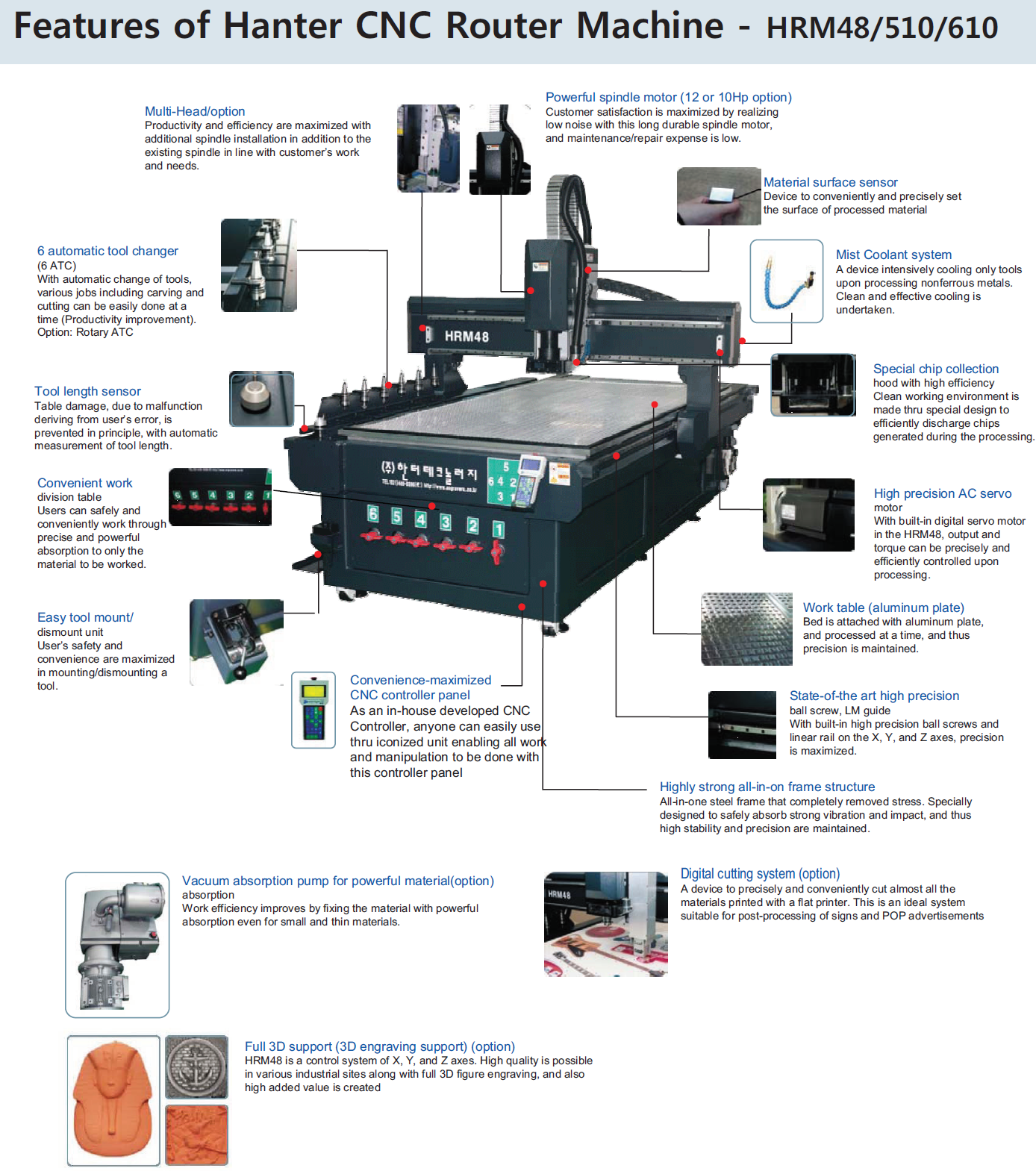

Hanter Technology HRM48

🟢 AC servo motor for 3 axis

🟢 Precision backlash-free ballscrews and L/M Guide (X, Y, Z axis)

🟢 High precision aluminium worktable 25mm for use with vacuum table

🟢 Aluminium worksurface with grid, 6 zones, individually valved

🟢 Maximum speed 250 mm/s

🟢 Repeatability 0.005mm

🟢 Positioning 0.02mm

🟢 Max Depth setting for table Protection

🟢 Network connection via TCP/IP

🟢 Mist coollant system

🟢 Machine Dimension 3,300 x 2,100 x 2,200mm ( L x W x H)

🟢 Work area 2,440mm x 1,220mm, Z axis clearance 200mm

🟢 Weight : about 2,500KG

🟢 i-cut camera for scaning

🟢 Tangential & Oscillating knife
